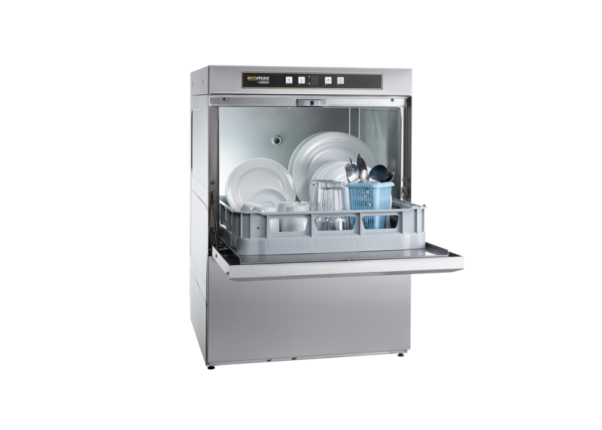

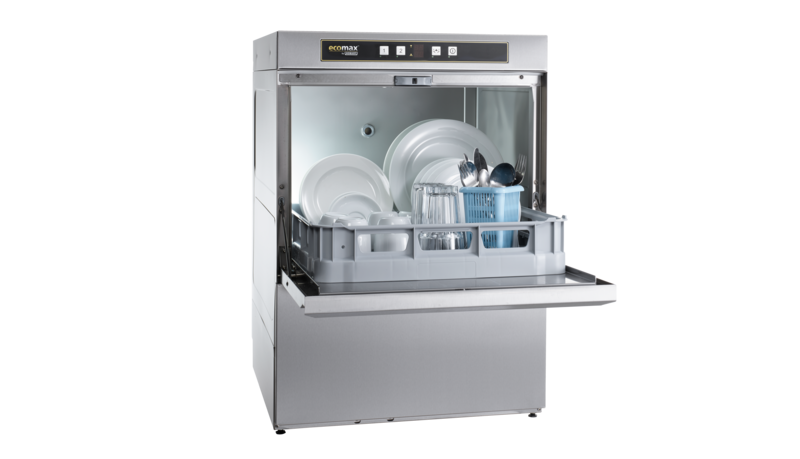

ECOMAX F504

webimage-1ACEEB64-BC23-49A5-BF00EB13DBF8BF6E
What would you like to do?
Request an offer Downloads Print Product comparison Contact

  • Electronic control with digital temperature indication for easy operation

  • Rotating wash and rinse arms for an even water distribution

  • Indented nozzles prevent blocking

  • Integrated counter for cycles and water consumption, e.g. for control of water treatment system

  • Deep drawn rack track for easy cleaning

  • USB connection for easier service access

  • Incl. connection cable, supply and drain hose for immediate operation

  • Thermostop function for guaranteed temperatures

  • Self-cleaning programme for hygienic cleanliness also in the machine

  • Tank strainer reduces soiling of the tank water

  • Rinse pressure pump for optimum flow pressure

  • Switchable to thermolable temperature setting

  • Capacity: 60 racks/hr, Cycle time: 60/150 sec.

  • Tank heat 1.8kW, Rinse booster 5.6kW (3.7kW 1ph)

  • Total loading 5.9kW (4.1kW 1ph)

  • Digital temperature display

  • Wash tank strainer, Rinse pump & Rinse dispenser

  • Fill and drain hose, Power cord,

  • Height 820 mm, 360 mm door opening

  • 1 plate rack, 1 cutlery insert

VARIANTS

Order number Description
ECO F504-10B

Basic model
AC 400/50/3N
ECO F504-32B

AC 230/60/1

TECHNICAL DATA

Cylce times* 60 / 150 sec
Capacity per hour* up to 60 racks
Wash/rinse temperature approx 60° C / approx 82°C
Tank capacity 25 l
Fresh water consumption/rack 2.3 l
Wash pump 0.34 kw
Heating booster/tank 5.6 (3.7**) kw / 1.8 kw
Total loading 5.9 (4.1**) kw
Rated voltage 400 / 50 / 3N (230 / 50 / 1)
Dimensions (height/width/depth) 820/576/604 mm
Loading height 360 mm
Rack size 500 x 500 mm

*hot water connection **with 230/50/1
60 Hz versions are available for an extra charge (min. lot size of 5 machines).

ACCESSORIES

Order number

Description

04-005259-001

DETERGENT DISPENSER (RETROFIT KIT)

04-005257-001

DRAIN PUMP (RETROFIT KIT)

04-005258-001

DRAIN PUMP FOR SOFTENER MODELS (RETROFIT KIT)

303171

GLASS RACK - MAX. Ø 98 MM

500 x 500 mm, steel wire, plastic coated, with 4 sloped rows for max. ø 98 mm

CB1

CUTLERY BOX

90 x 90 mm, plastic, loose, for appr. 20 pieces of cutlery

01-246175-1

CUTLERY RACK - 230 X 230 MM

230 x 230 mm, plastic, with 4 compartments, for appr. 80 pieces of cutlery (4 x 20)

C-01-07

CUTLERY RACK - 500 X 500 MM

500 x 500 mm for cutlery in horizontal position narrow mesh bottom, also usable as universal rack

B-00-07

UNIVERSAL FLAT RACK - HEIGHT 7 CM

with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 7 cm

B-00-11

UNIVERSAL FLAT RACK - HEIGHT 11 CM

with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 11 cm

B-00-16

UNIVERSAL FLAT RACK - HEIGHT 16 CM

with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) height 16 cm

P-18-12

PLATE RACK

9 spaces, full peg, for 18 flat or 12 deep plates up to 260 mm diam. or 9 trays up to 470 mm

694497

CUP INSERT

for sloped position, steel wire, plastic coated, for universal flat rack

04-006535-001

DRAIN PUMP

drain pump (retrofit kit) for 60 Hz
