Premax Line
Profi Line
Ecomax By Hobart

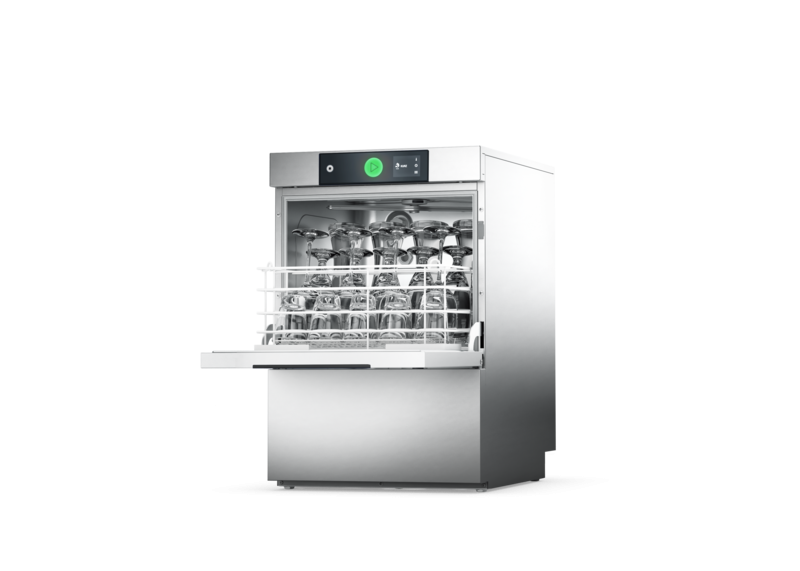

PREMAX GCP
- Compact glasswasher: with an installation height of only 705 mm ideal for narrow places or with integrated reverse osmosis and an installation height of 820 mm ideal for undercounter installation.
- VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with singlebutton control and remaining cycle time indication.
- WASHSMART app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order.
- VAPOSTOP: prevents vapour to escape from machine when door is opened.
- PERFECT drying manager: assistance for better drying results.
- 1.9 l rinsing: water consumption per cycle of only 1.9 l which results in a reduction of water, chemicals and energy consumption of 35 %.
- CLIP-IN wash and rinse arms:can be removed with one hand and without any tools.
- Intelligent data documentation: automatic recording of important operational data and consumptions and indication on the display.
- USB-interface: comfortable download of operational data in form of a protocol via USB.
- GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35 %.
- Cold rinsing: the rinse can be switched from hot to cold water so that you get cooler glasses without any loss of time.
- Intensive programme: intensive rinse cycle to wash glasses with critical design with raised fresh-water amount.
- Interlocked strainer: prevents operation without tank strainer.
- Optional refill signal: monitors contents of external as well as integrated chemical containers.
- Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber.
- Thermolabel 71 °C: default temperatures setting acc. European DIN can be switched by operator to a higher thermolable setting.
- Front door glasswasher with VAPOSTOP & PERFECT drying support
- Nominal capacity up to 48 racks/h or 960 glasses/h
- 6 automatic cycles: short, standard, intensive rinse, cold water rinse, basic cleaning, hygiene
- Smooth counterbalanced door with closing mechanism
- Integrated WiFi module
- Multi-setting: easy switchable from 400 V to 230 V on site
- Ready to install - completely equipped: fill / drain hose, power cord (400 V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump, back-flow preventer
- Tank, frame, rinse arm and panels are stainless steel 1.4301
- 1 glass rack 01-294462-001: 400 x 400 mm
VARIANTS
| Order number | Description |
|---|---|
| GCP-10B |
Basic model |
| GCPROI-10B |
with integrated reverse osmosis |
TECHNICAL DATA
| Cylce times* | 75 / 120 sec.and special cycles |
| Water consumption | 1.9 l/rack |
| Tank capacity | 8 l |
| Tank heating | 2,4 kW |
| Power supply | 400 / 50 / 3N (230 / 50 / 1) |
| Booster loading - Standard | 4.2 kW |
| Booster loading - Alternative | 2.8 kW |
| Total loading - Standard | 4.6 kW | 3 x 16A |
| Total loading - Alternative | 3.2 kW | 16A |
| Wash pump | 0.4 kW | 220 l/min |
| Rack size | 400 x 400 mm |
| Loading height | 315 mm |
| Noise level | 62 dB (A) |
| Weight (gross / net) | 64 / 58 kg |
*Thermostop guarantees required temperatures with cold water and / or 230 V connection, the actual cycle times extend accordingly.
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT.
ACCESSORIES
| Order number | Description |
|---|---|
| RO-S |
Small free standing reverse osmosis |
| 01-539385-001 |
Installation kit for reverse osmosis including: back flow prevention for drain connection according EN 1717, dirt collector, syphon, connection pieces and fixing materials |
| 01-294373-001 |
Retrofit kit for integrated chemical containers |
| 01-240349-004 |
Cabinet base 435 mm high, with removable door, stainless steel, |
| 01-531857-001 |
Adapter for 435 mm base for use with GCPROI and GCROI |
| 01-294462-001 |
Glass rack with drying support 400 x 400 mm for PREMAX GCP, with 4 sloped rows with glass positioning element for optimised drying results |
| 04-006330-001 |
Low level chemical sensing lance set 450 mm for external containers (up to 20 litre) |
| 04-006330-002 |
Low level chemical sensing lance set for external containers (up to 10 liters or limited height) |
| 371450-83 |
Universal flat rack 400 x 400 mm, without sloped rows, plastic coated, height 115 mm |
| 897951 |
Bistro universal rack 400 x 400 mm, half side flat for cups, half side for 13 small coffee plates, height 115 mm |
