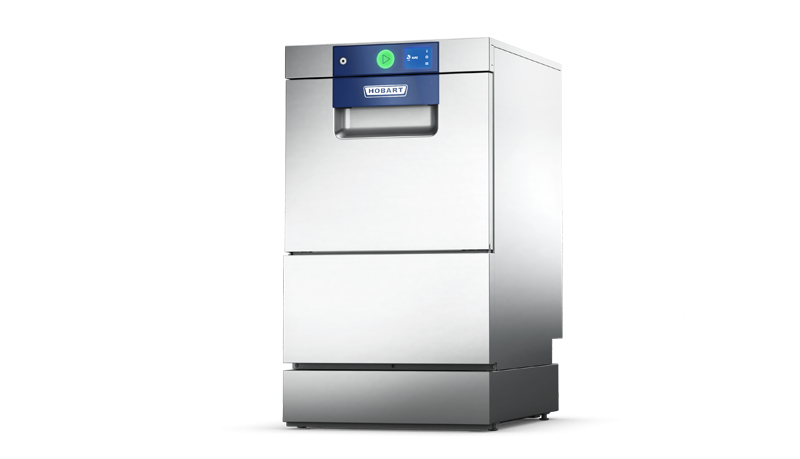

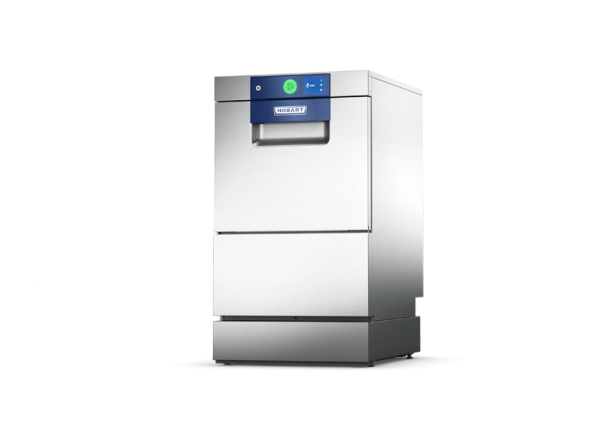

HYDROLINE PURE RO-I
- Minimum space requirement: Machine with integrated reverse osmosis has a total height of only 815 mm and fits under the counter
- Provides demineralised water in continuous operation for highest demands on the wash result
- Prevents salt and limescale stains on glasses
- No need for manual polishing of glasses and cutlery
- Protects machine against limescale deposits
- Optimises the effectiveness of detergents
- Minimum operating costs at highest capacity
- Direct communication with the dishwasher
- Fast and easy removal of the pre-filter
- The raw mains water enters an enclosed system and is forced at high pressure through a special extremely fine membrane
- Salts and minerals are thereby completely removed from the water. The downstream dishwasher is thus supplied by perfectly clean water
- Easy access to membrane and pre-filter
- Operational indications on the display of the glasswasher
Variants
| Order number | Description |
|---|---|
| GCPROI-10A |
with integrated reverse osmosis, 815 mm height |
| GXCROI-11A |
with integrated reverse osmosis, 815 mm height |
| GCROI-10A |
with integrated reverse osmosis, 815 mm height |
Technical data
| Weight (gross / net) | 20 kg |
| Maximum hardness | 35 °dH |
| Max. conductivity supply water | 1,200 μS/cm |
| Supply capacity continuously | 2 l/min |
The installation must be preformed according to EN 1717.
The corresponding back flow prevention type EA for the raw water supply is integrated in the RO.
A back flow prevention for the drain connetion is part of the optional installation kit.
From 10° dH, we recommend installing an upstream water softening system to prevent the blockage of the membrane.
Hard water reduces the permeate output rate and shortens the service life of the membrane.
ACCESSORIES
| Order number | Description |
|---|---|
| 01-539385-001 |
Installation kit for reverse osmosis including: back flow prevention for drain connection according EN 1717, dirt collector, syphon, connection pieces and fixing materials |
| 01-294225-101 |
Carbon pre-filter cartridge |
| 01-294217-001 |
25 litre buffer tank |
